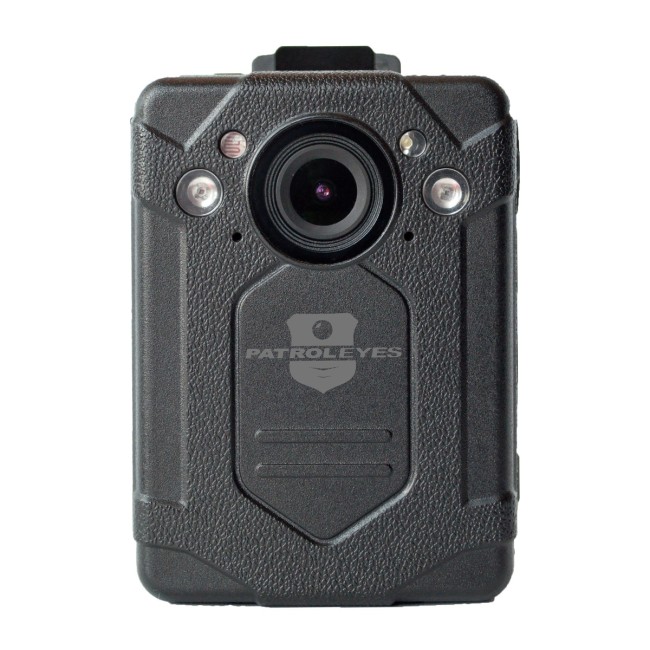

PatrolEyes MAX 2K GPS Auto IR Police Body Camera

In stock
SKU
PE-MAX
$399.00

The PatrolEyes MAX body camera is a high-definition video recorder for law enforcement with ultra high quality 2K HD video. With its 140° wide angle lens and 32GB of storage, it can capture everything that happens for up to 14 hours. With the press of a single button, recording can start even when the camera is turned off. The built in LCD allows you to review videos, photos or audio recordings in the field. The MAX has a durable housing along with a waterproof rating of IP66. The MAX comes with built-in GPS that can be viewed on maps with the included software

View the camera in action!

2K High Definition

With the ability to record in crystal clear HD 2K video, this camera's wide angle view will record every detail

High Capacity Battery

Comes with a built in lithium-ion battery that allows for recording of up to 14 hours or on standby for 18 hours

Heavy Duty Casing

Weather resistant and drop proof up to 10 feet!

Pre and Post Event Recording

Allows you to record videos 15 seconds prior or after the point when you press record, so you never miss a moment.

Built-in GPS

Stamps GPS location on video files and can be viewed on maps with the included software

Included Charging Station

The drop-in charging station allows you to charge your camera and transfer data

Waterproof

With a waterproof rating of IP66, your camera will be safe from any accidental spills or splashes

Large Storage Space

Comes with 32GB of storage so you can record hours of footage

Auto Infrared

Automatic night vision recording allows you to see up to 30ft in low light settings

Snapshot Feature

Allows you to capture photos while recording

Advanced Electronic Image Stabilization (EIS)

Allows you to achieve clear, steady images even when the camera is shaking.

Time/Date/ID stamp

Date and time stamp on every video with officer ID that can't be tampered with

Device Logging

When transferring videos the included files have their own unique device ID, log files, and video/photo files organized into folders so you can easily find the evidence you need

Specifications:

  • Battery Life: Up to 14 hours
  • Storage: Built-in 32GB
  • Video Resolution Modes: 2K @ 30fps | 1080P @ 30fps | 720P @ 60fps | 720P @ 30fps | 480P @ 30fps
  • Photo Resolution: Up to 32MP
  • Video Format: .MOV
  • Photo Format: .JPG
  • Battery: Built-in 4500mAh lithium
  • Standby Battery Life: Up to 18 hours
  • Field of View: 140°
  • Night Vision: Auto infrared
  • Night Vision Range: Up to 30ft with visible face detection
  • Waterproof Rating: IP66
  • Time and Date Stamp: Embedded on every video with user ID
  • Burst Photo: 1, 3, or 5 photos at once
  • Fast Forward or Rewind Speeds: 2x, 4x, 8x, 16x, 32x or 64x
  • Working Temperature: -40°C to 60°C
  • Camera Weight: 5.64oz
  • Camera Dimensions: 79x56.9x26.6mm
  • Camera Chipset: AIT
  • Video Storage:
    • 2K @30fps (1 hour of footage=4.3GB)
    • 1080p @30fps (1 hour of footage=3.6GB)
    • 720p @30fps (1 hour of footage=3.2GB)
    • 720p @60fps (1 hour of footage=3.6GB)
    • 480p @30fps (1 hour of footage=2.7GB)

Includes:

  • USB cable
  • Wall charger
  • Car USB charger
  • Drop-in charging station

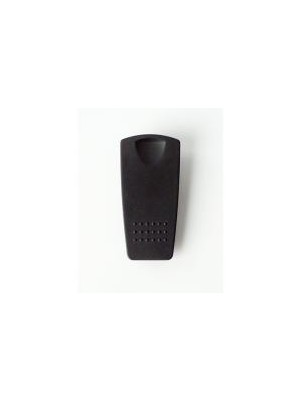

  • Metal body clip
  • User manual
  • 1 year manufacturer warranty


PatrolEyes Camera Comparison:

DV1-2

DV1-2-XL

DV5-2

DV7 Ultra

DV10

MAX

DV10 PRO

Camera
Video Resolution 2K 2K 2K 2K 2K 2K 1080p
Night Vision Manual Manual Auto Auto Auto Auto Auto
Camera Resolution 33MP 33MP 33MP 32MP 32MP 32MP 32MP
Chipset Ambarella A7 Ambarella A7 Ambarella A7 Ambarella A7 Ambarella A7 AIT Ambarella A12
FOV 140° 140° 170° 170° 140° 140° 140°
Battery
Battery life 8 hours 13 hours 6 hours 8 hours 8.5 hours 14 hours 12 hours
Removable Battery No No Yes No No No No
Charging Dock No No Yes + data Yes + data Yes + data Yes + data Yes + data
Charge time 150 minutes 150 minutes 200 minutes 240 minutes 180 minutes 240 minutes 240 minutes
Capacity 3000mAh 4000mAh 1950mAh 2650mAh 3200mAh 4500mAh 3200mAH
Storage
Storage Max 64GB* 128GB 64GB* 64GB 64GB 64GB 64GB
File Format .MP4 .MOV .MOV .MP4 .MOV .MOV .MP4
Type Internal Removable Internal Internal Internal Internal Internal
Functions
Pre/post event
recording
Yes Yes Yes Yes Yes Yes Yes
Pre-record
time
60 seconds 60 seconds 60 seconds 60 seconds 60 seconds 30 seconds** 120 seconds
One touch recording Yes Yes Yes Yes Yes Yes Yes
Motion Detection Yes No Yes Yes Yes Yes No
GPS Optional
adapter
Yes Yes Yes* Yes* Yes Yes
Wifi No No Yes* No Yes No Yes
Streaming No No No No No No Yes (via WiFi)
Loop Recording Yes Yes Yes Yes ** Yes ** Yes ** Yes **
Password Protection No No No No Yes Yes Yes
Body
Weather Resistance IP65 IP65 IP65 IP65 IP65 IP66 IP67
External Camera
Support
Yes Yes Yes Yes* Yes Yes Yes
USB Yes (mini-B) Yes (mini-B) Yes (mini-B) Yes (mini-B) No Yes (mini-B) Yes (type C)
HDMI Yes (mini) Yes (mini) Yes (mini) No (mini) No No No
AV Yes (in/out) Yes (in/out) No No No No No
Extension port Yes
(PTT/GPS)
Yes
(PTT/GPS)
Yes (PTT) Yes (PTT) No No No
SD Card No Yes (micro) No No No No No
LCD screen Yes Yes Yes Yes No Yes No
Weight (Ounces) 5.3 6.30 5.3 4.9 4.1 4.9 5.6
Dimensions (Inches) 3.70x
2.40x
1.22
3.70x
2.40x
1.30
3.31x
2.40x
1.22
3.03x
2.20x
1.10
3.03x
2.20x
0.87
3.21x
2.28x
0.93
3.1x
2.20x
1
Support
Warranty 1 year 1 year 1 year 1 year 1 year 1 year 1 year
Storage
1080P@30fps 1 hour =
5GB
1 hour =
5GB
1 hour =
5GB
1 hour =
3GB
1 hour =
4.3GB
1 Hour =
3.6GB
1 Hour =
5.6GB
720P@30fps 1 hour =
3.6GB
1 hour =
3.6GB
1 hour =
3.6GB
1 hour =
1.6GB
1 hour =
3.7GB
1 Hour =
3.6GB
1 Hour =
3.6GB
480P@30/60fps 1 hour =
2.1GB
1 hour =
2.1GB
1 hour =
2.1GB
1 hour =
1.1GB
1 hour =
2.3GB
1 Hour =
2.7GB
1 Hour =
1.8GB

*special order only

**via optional firmware

More Information
SKU PE-MAX
Battery Capacity 4500mAH
Battery Life up to 14 hours
Camera Dimensions 79x57x26mm
Camera Resolution 2K @ 30fps | 1080P @ 30fps | 720P @ 60fps | 720P @ 30fps | 480P @ 30fps
Charge Time 4 Hours
Charging Dock Yes data
Chipset AIT
Video Format .MOV
FOV 140°
IP Rating IP66
Night Vision Auto
Night Vision Range 30ft
Photo Burst 1, 3, or 5 photos at once
Photo Format .JPG
Playback Speeds 2x, 4x, 8x, 16x, 32x or 64x
Pre/post Event Recording Yes
Removable Battery No
Standby Battery Life 18 Hours
Storage Type Internal
Storage Max 64GB
Time and Date Stamp Yes
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account

PatrolEyes MAX Manual

PatrolEyes MAX Brochure


FAQs

  1. My camera says card full! How do I format my card?
    • If you are on windows, plug your camera into your PC and navigate to "My Computer" or "This PC". You should see your body camera's assigned drive letter. Usually D, E, or F. Depending on how many devices are connected to your computer. Right click on the drive letter assigned to your body camera and select "Format" towards the bottom. Another window will pop up showing you the settings available to format your device. Make sure the "File System" is set to exFAT, enable "Quick Format" and then press "Start". Your device is now formatted.

  2. How do I view the files I have recorded?
    • You can view the files directly on the device or transferring the files via USB to a PC.

  3. What is the difference between high, medium and low in the video quality menu option?
    • High, medium and low are referring to the bitrate of the video. The higher the bitrate the higher the video quality. If you want to get the most battery life, setting the video quality to low will allow you to get up to 1 hour of extra battery life in certain modes.
  4. Can I enable night vision mode without the infrared LED's glowing red for stealth operations?

    • Yes. Simply go into the camera's menu and set "IR Filter" to Manual and "IR LED" to Off.

  5. Does audio record with the video in pre-event recording mode?

    • Yes, audio and video are both recorded while in this mode but can be disabled.

  6. What is the default password for the camera?

    • The default password is 000000.

  7. How much video can be recorded in pre-event recording mode?

    • 30 seconds

Firmware:

To install a firmware update on the PatrolEyes MAX body camera please download the firmware from the links below.

  1. Plug in your camera via the included USB
  2. Download the appropriate .bin file from above firmware download section
  3. Once the .bin file has been downloaded, place the .bin file in the ROOT directory of your camera
  4. Unplug the camera from your computer, the camera should power off. Turn the camera back on and you should see the message "Reading File" followed by "Writing Firmware". The camera will automatically reboot when the firmware update is complete.

Firmware Downloads

Due to multiple firmware versions we request that you email us your camera's serial number so we can send you the correct firmware to avoid the bricking of your camera

Please email us at support@patroleyes.com for any firmware updates or questions
