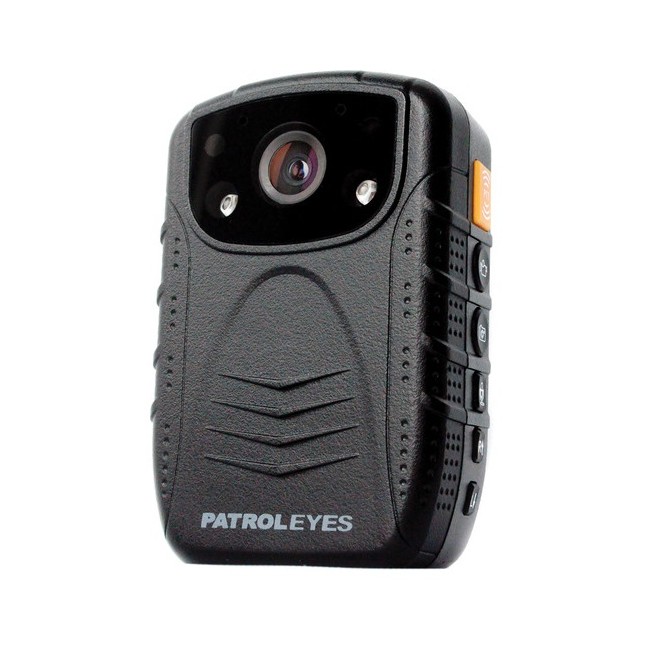

PatrolEyes DV1 2 Wide Angle Infrared Police Body 2K Camera / PE-DV1-2 / PatrolEyes / Stuntcams

Please note: This model is for a manufacturer refurbished camera which will be in good condition with possibly some small scratches, the lens and lens cover will be scratch free. 90 DAY WARRANTY. Choose between the DV1-2 16GB or XL version

The PatrolEyes 1296P Infrared Wide Angle Police body camera is here! The DV1 2 is an improved version of the DV1 body worn camera, a high-definition video recorder for law enforcement with ultra high quality 1296p HD video. With its 140 degree wide angle lens or 170 degree in 480p mode and 32GB of storage, it can capture hours of footage. With the press of a single button, recording can start even when the camera is turned off. The built in LCD allows you to review videos, photos or audio recordings in the field. The PatrolEyes HD has 3 indicators (vibration, LED light and sound) to confirm start/stop of recordings and has built in watermarks that cannot be tampered with.

One Touch Recording

While in standby mode or turned off, simply press the record button on the camera to start recording. LED indicators, audio(can be disabled) and vibration alerts will notify you when recording has started or stopped.

True 1296p High Definition

With the ability to record in crystal clear HD 1296p video, this cameras wide angle view will record every detail.

Extended Battery Life

Record for up to 8 hours on a single charge!

33 Megapixel Camera

Features a 33MP camera with burst shot options, the built-in memory can store thousands of high quality images instantly. Snap pictures while the the camera is recording as well.

Advanced Electronic Image Stabilization (EIS)

Allows you to achieve clear, steady images even when the camera is shaking.

Pre and Post Event Recording

Allows you to record videos 30 seconds prior or after the point when you press record, so you never miss a moment.

Multiple Night Vision Options

Built in dual infrared LED's can be turned on or off with the push of a button. Record up to 30 feet in pitch darkness with the infrareds activated or disable them for covert low light recording while still in night vision mode.

Time/Date/ID stamp

Date and time stamp option on every video with officer ID, that can't be tampered with. Can also be password protected.

External Camera Support

Supports an optional 5V external button camera for covert applications or a wide angle lens version for a lower profile setup.

External Viewing

The 2" color LCD screen with built in speaker allows you to view video and audio recordings instantly. AV out port and a micro HDMI port allow for viewing data on a larger screen.

Device Logging

When transferring videos the included files have their own unique device ID, log files, and video/photo files organized into folders so you can easily find the evidence you need!

Walkie Talkie (PTT Function)

The PTT function with compatible cable allows you to replace your shoulder microphone so you can connect the PatrolEyes HD to your walkie talkie. View our list of PTT walkie talkie compatible models.

Continuous / Loop Recording

Seamless recording -- ideal when transitioning from being used as a dash camera to body camera (NOTE: this feature only available when camera has USB mode firmware)

Heavy Duty Casing

Weather resistant and drop proof up to 10 feet!

GPS (optional)

Track GPS locations using the optional adapter and software. GPS coordinates will be embedded onto the video file.

Multiple Firmware Options

Allows you to manage your camera in multiple modes -- choose between our password protected version or non-password protected version firmware.

Specifications:

Battery Life: Up to 8 hours
Video Resolution: 1296p @ 30fps, 1080p @ 30fps, 720p @ 30/60fps, 480p @ 30/60fps
Video Format: .MP4
Photo Format: .JPG
Image Stabilization: Advanced Electronic Image Stabilization (EIS)
Storage:16/ 32GB
Frame Rate: 30fps/60fps
Video Bitrate: 2.5 Mb/s
Charging time: 150 min
Weather resistant: IP57
Audio recording: Enabled (Can be disabled by pressing the "confirm" button while recording video)
Battery: Built-in 3000mAh
Field of View: 140°
Night Vision: 2 Built-in 850NM IR LED's
Night Vision Range: Up to 32ft with visible face detection
Time and Date Stamp: Embedded on every video with user ID
Burst Photo: 1, 3, or 5 photos at once
Fast Forward or Rewind Speeds: 2X, 4X, 8X, 16X, 32X, 64X
Working Temperature: -40°C to 60°C
Camera Weight: 175 grams
Camera Dimensions: 94x61x31 mm
Camera Chipset: Ambarella A7
Video Storage:

1080p @30fps (1 hour of footage=5GB)
720p @30fps (1 hour of footage=3.6GB)
480p @30/60fps (1 hour of footage=2.1GB)

Battery Life:

480P: 8 hours
720P: 7.5 hours
1080P: 6.5 hours

Includes:

Metal swivel body clip
USB cable
USB wall charger
Manual
90 Day Warranty

	DV5-2	DV10 WiFi	DV10 Pro	MAX	EDGE	IRIS
Camera
Video Resolution	2K	2K	1080p	2K	2K	2K
Night Vision	Auto	Auto	Auto	Auto	Auto	Auto
Camera Resolution	33MP	32MP	32MP	32MP	32MP	40MP
Chipset	Ambarella A7	Ambarella A7	Ambarella A12	AIT	Ambarella H22	Ambarella A12
FOV	170°	140°	140°	140°	140°	140°
Battery
Battery Life	6 hours	10 hours	12 hours	14 hours	18 hours	12 hours
Removable Battery	Yes	No	No	No	No	Yes
Charging Dock	Yes + data	Yes +data	Yes + data	Yes + data	Yes + data	Yes + data
Charge Time	200 minutes	180 minutes	240 minutes	250 minutes	4 Hours	5.5 hours
Capacity	1950mAh	3200mAH	3200mAH	3200mAh	3200mAH	2200mAH
Storage
Storage Max	64GB*	64GB	64GB	64GB	64GB	128GB
File Format	.MOV	.MOV	.MP4	.MOV	.MP4	.MP4
Type	Internal	Internal	Internal	Internal	Internal	Internal
Functions
Pre/post event recording	Yes	Yes	Yes	Yes	Yes	Yes
Pre-record time	60 seconds	60 seconds	120 seconds	30 seconds	75 seconds	120 seconds
One touch recording	Yes	Yes	Yes	Yes	Yes	Yes
Motion Detection	Yes	Yes	No	Yes	Yes	N/A
GPS	Yes	No	Yes	Yes	Yes	Yes
WiFi	Yes (optional)*	Yes	Yes	No	No	Yes
Streaming	No	No	Yes (via WiFi)	No	No	No
Loop Recording	Yes	Yes (optional firmware)	Yes	Yes	No	Yes
Password Protection	Yes	Yes	Yes	Yes	Yes	Yes
Video Compression	H.264	H.264	H.264	H.264	H.265	H.265
Body
Weather Resistance	IP57	IP68	IP67	IP66	IP65	IP65
External Camera Support	Yes	Yes (optional)*	Yes	No	Yes	Yes (optional)*
USB	Yes (mini-B)	No	Yes (type C)	Yes	Yes (mini-B)	Yes (Type-C)
HDMI	Yes (mini)	No	No	No	No	No
Extension port	Yes (PTT)	No	No	No	No	No
LCD screen	Yes	No	No	Yes	Yes	Yes
Weight (ounces)	5.75	4.58	5.6	5.64	4.9	4.58
Dimensions (inches)	3.31x2.40x1.22	3.03x2.20x0.87	3.1x2.20x0.93	3.1x2.20x1	3.1x2.20x1	3.26x2.24x1
Support
Warranty	1 year	1 year	1 year	1 year	1 Year	1 Year
Video Storage
1080P@30fps	1 hour = 5GB	1 hour = 4.3GB	1 Hour = 5.6GB	1 Hour = 3.6GB	1 Hour = 2.6GB	1 Hour = 5.6GB
720P@30fps	1 hour = 3.6GB	1 hour = 3.7GB	1 Hour = 3.6GB	1 Hour = 3.6GB	1 Hour = 1.8GB	1 Hour = 3.6GB
480P@30/60fps	1 hour = 2.1GB	1 hour = 2.3GB	1 Hour = 1.8GB	1 Hour = 2.7GB	1 Hour = 1GB	1 Hour = 1.8GB
* special order only

More Information

More Information
SKU	PE-DV1-2
Battery Capacity	3000mAh
Battery Life	8 hours
Camera Dimensions	3.7x2.4x1.2
Camera Resolution	33MP
Charge Time	150 minutes
Charging Dock	No
Chipset	Ambarella A7
Video Format	.MP4
FOV	140°
IP Rating	IP57
Night Vision	Manual
Night Vision Range	30ft
Photo Burst	1, 3, or 5
Photo Format	.JPG
Playback Speeds	2x, 4x, 8x, 16x, 32x or 64x
Pre/post Event Recording	Yes
Removable Battery	No
Standby Battery Life	10 Hours
Storage Type	Internal
Storage Max	64GB
Time and Date Stamp	Yes
Video Resolution	1296p

Reviews 1

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Manuals / Brochures

PatrolEyes DV1-2 Manual (PE-DV1-2/PE-DV1-XL-2)

PatrolEyes DV1-2 Brochure

FAQs

I've reset my device and my camera will still not connect to my PC.

Please check or disable your antivirus software as that may be interfering with the connection of your device. Restart your PC and then close out of your antivirus and reconnect. Please also press down firmly on the camera if you are using a docking station to ensure it is connected. Once the device is connected you will hear a windows audio tone confirming that the device is now connected.

What is the difference between password mode and usb mode?

USB Mode: The pre-installed firmware allows you to transfer files directly to your PC via USB.
Password Mode: An optional firmware version that allows you to password protect the cameras files, making the user input a password before being able to transfer files to a computer. No extra software is needed.

My camera says card full! How do I format my card?

If you are on windows, plug your camera into your PC and navigate to "My Computer" or "This PC". You should see your body camera's assigned drive letter. Usually D, E, or F. Depending on how many devices are connected to your computer. Right click on the drive letter assigned to your body camera and select "Format" towards the bottom. Another window will pop up showing you the settings available to format your device. Make sure the "File System" is set to fat32 if your camera is a 32GB model or smaller or exFAT if your camera is 64GB or larger. Enable "Quick Format" and then press "Start". Your device is now formatted.

My camera is not turning on or holding a charge and I've already pressed the reset button!

Plug your camera into a wall charger and take not of the status of the blue light. If the blue light is solid but the camera still will not hold a charge you will need to replace the battery. If the blue light does not come on or starts to flicker or is constantly flickering, please contact us.

Can I turn the LCD off?

The LCD will automatically turn off to save power or you can always press the "display off" (light bulb) button as well.

How do I view the files I have recorded?

You can view the files directly on the device, using the HDMI or AV out port to view on a TV or transferring the files via USB to a PC. Note: If your camera is in police software mode you will have to use the police software.

Can the lights on the top of the unit be turned off?

No, the lights are very dim and will only be visible from the officer.

What does file duration mean?

File duration is referring to how often the camera splits the video files. The camera will record until the battery is dead or the storage is full

What is the difference between high, medium and low in the video quality menu option?

High, medium and low are referring to the bitrate of the video. The higher the bitrate the higher the video quality. If you want to get the most battery life, setting the video quality to low will allow you to get up to 1 hour of extra battery life in certain modes.

Can I replace the battery myself?

Yes, please view the battery replacement guide below. If you do not feel comfortable doing this yourself, we can do it for you. Please email us at support@stuntcams.com

Do you have a list of compatible walkie talkie cables?

View a list of compatible PTT cables. All non Kenwood and non Motorola models must be special ordered.

Can I enable night vision mode without the infrared LED's glowing red for stealth operations?

Yes, with our latest firmware you now have this option. In night vision mode, the cameras lens infrared filter is removed which allows more light to pass thru which enables the camera to be 3-4X better than in day mode in low light conditions.

My videos are sometimes pink during the daytime, how do I fix this?

This means the infrared filter has moved out of place. You simply need to press the IR button once again and the IR filter will shift back into place and it will go back into daytime mode. This may occur if the camera was dropped, which can cause the filter to shift into this mode. Please also make sure the IR filter setting in the menu is set accordingly.

Does audio record with the video in pre-event recording mode?

Yes, audio and video are both recorded while in this mode.

How much video can be recorded in pre-event recording mode?

It depends on which resolution you are recording in and the video quality mode (bitrate).

1080P (high): 6 seconds
720P (high): 7 seconds
480P (high): 15 seconds
480p (low): 25 seconds

Battery Replacement Guide:

No special tools are needed. You will need a small phillips and a flat head screwdriver.

On the back of the camera remove the 4 rubber plugs. They are not glued in.
Unscrew the 4 screws.
Firmly but gently pull the 2 shells apart. They do NOT come apart right away. They are still attached via 2 wires.
You will now see a white, flat cable. The cable will detach from the "front" half of the camera. Where the cable is attached, you should see a black piece of plastic that is slightly wider than the cable. Take a screw driver, and lift both sides up slightly. The piece of plastic will not come out but will become loose.
Now lay the 2 piece side by side on a table. You should now be able to see the battery.
Remove the top 2 screws located on the top PCB board. Do not move it yet.
Remove the 2 screws that secure the metal strap around the battery. Do not move anything yet.
On the other half of the camera, the side with the lens, you will see where the battery connects to the main PCB board. It will most likely have hot glue on the cable.
Take a flat head screwdriver and peel the glue away. Do not dig into the actual board, the glue should peel off with relative ease.
There is a very small clip on the power cable. Depress the clip and pull the cable out.
Back to the other side of the camera. Lift the small PCB board up slightly. Lift the metal strap up and remove the battery.
Now place the replacement battery where the old battery was. Attach the power cable to the power port, you should hear a click. Hot glue is not needed.
Screw the PCB board and the metal battery strap back.
Now attach the flat white cable back to its port. It should slide between the black plastic piece and the port. Take a small screwdriver and press the black plastic tabs back down, securing the cable.
Connect both halves of the camera back together.
