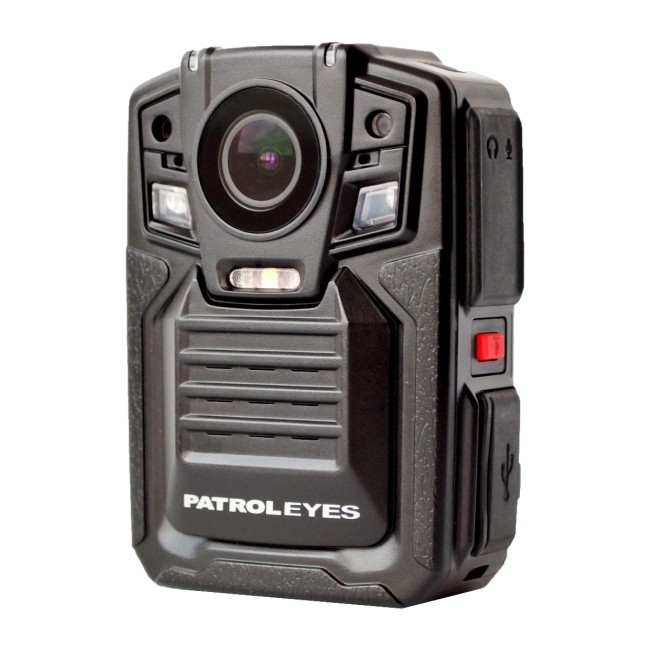

PatrolEyes 1296P HD GPS Auto IR Police Body Camera DV5 2 / PE-DV5-2 / PatrolEyes / Stuntcams

Details

The new and improved PatrolEyes GPS auto infrared HD police body camera is here! The DV5-2 is an improved version of the SC-DV5 body worn camera, a high-definition video recorder for law enforcement with ultra high quality 1296p HD video. With its 170° wide angle lens and 32GB of storage, it can capture everything that happens for hours. With the press of a single button, recording can start even when the camera is turned off. The built in LCD allows you to review videos, photos or audio recordings in the field. The camera has a durable housing and is completely waterproof up to a depth of 3ft, making it safe for any accidental drops. The DV5-2 includes a removable battery, so you can quickly swap out the battery and continue recording with ease! Also comes with built-in GPS which allows you see where video takes place as you view it!

True 1296p High Definition

With the ability to record in crystal clear HD 1296P video, this camera's wide angle view will record every detail

Removable Battery

Comes with a 6 hour battery that can easily be swapped out for much longer recording

Advanced Electronic Image Stabilization (EIS)

Allows you to achieve clear, steady images even when the camera is shaking.

Built-in GPS

Shows GPS location while viewing video with the included video viewing software (note: to acquire GPS signal please allow 1-2 min)

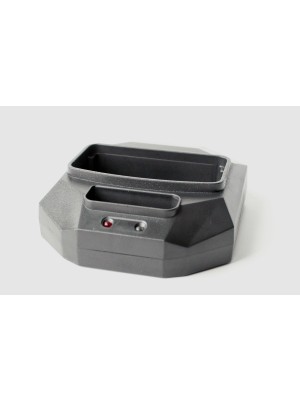

Included Charging Station

The drop-in charging station allows you to charge both an extra battery and the camera at the same time

Motion Detection

Comes with a motion detection feature to allow for recording only when something happens

Waterproof

Waterproof up to 3ft, so any accidental splashes won't damage the camera

Large Storage Space

Comes with 32GB of storage so you can record hours of footage

Auto Infrared

Automatic night vision recording allows you to see up to 30ft in low light settings

Snap Shot Feature

Allows you to capture photos while recording

Time/Date/ID stamp

Date and time stamp option on every video with officer ID that can't be tampered with. Can also be password protected

Device Logging

When transferring videos the included files have their own unique device ID, log files, and video/photo files organized into folders so you can easily find the evidence you need

Walkie Talkie (PTT Function)

The PTT function with compatible cable allows you to replace your shoulder microphone so you can connect the PatrolEyes HD to your walkie talkie. View our list of PTT walkie talkie compatible models

Continuous & Loop Recording

Seamless recording -- ideal when transitioning from being used as a dash camera to body camera (NOTE: this feature only available when camera has USB mode firmware)

Multiple Firmware Options

Allows you to manage your camera in multiple modes -- choose between our password protected version or non-password protected version firmware.

Specifications:

Battery Life: Up to 6 hours
Video Resolution Modes: 1296P @ 30fps | 1080P @ 30fps | 720P @ 30fps | 720P @ 60fps | 480P @ 30fps | 480P @ 60fps
Photo Resolution: Up to 33MP
Video Format: .MP4
Photo Format: .JPG
Image Stabilization: Advanced Electronic Image Stabilization (EIS)

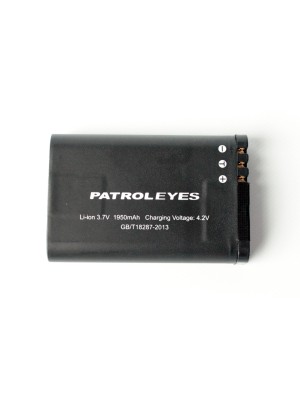

Battery: Removable 3.7v 1950mAh battery
Standby Battery Life: Up to 15 hours
Field of View: 170°
Night Vision: Auto infrared
Night Vision Range: Up to 32ft with visible face detection
Motion Detection Capable: Yes
Waterproof: Up to 3ft depth
Time and Date Stamp: Embedded on every video with user ID
Burst Photo: 1, 3, or 5 photos at once
Fast Forward or Rewind Speeds: 2x, 4x, or 8x
Working Temperature: -40°C to 60°C
Camera Weight: 6.17oz
Camera Dimensions: 3.3x2.7x1.2 inch
Video Storage:

1080p @30fps (1 hour of footage=5GB)
720p @30fps (1 hour of footage=3.6GB)
480p @30/60fps (1 hour of footage=2.1GB)

Battery Life:

480P: 5.6 hours
720P: 5 hours
1080P: 4 hours

Includes:

USB cable
Wall charger
Car USB charger
Drop-in charging station
Metal body clip
Lithium battery
User manual
1 year manufacturer warranty

	DV5-2	DV10 WiFi	DV10 Pro	MAX	EDGE	IRIS
Camera
Video Resolution	2K	2K	1080p	2K	2K	2K
Night Vision	Auto	Auto	Auto	Auto	Auto	Auto
Camera Resolution	33MP	32MP	32MP	32MP	32MP	40MP
Chipset	Ambarella A7	Ambarella A7	Ambarella A12	AIT	Ambarella H22	Ambarella A12
FOV	170°	140°	140°	140°	140°	140°
Battery
Battery Life	6 hours	10 hours	12 hours	14 hours	18 hours	8 hours
Removable Battery	Yes	No	No	No	No	Yes
Charging Dock	Yes + data	Yes +data	Yes + data	Yes + data	Yes + data	Yes + data
Charge Time	200 minutes	180 minutes	240 minutes	250 minutes	4 Hours	5.5 hours
Capacity	1950mAh	3200mAH	3200mAH	3200mAh	3200mAH	2200mAH
Storage
Storage Max	64GB*	64GB	64GB	64GB	64GB	128GB
File Format	.MOV	.MOV	.MP4	.MOV	.MP4	.MP4
Type	Internal	Internal	Internal	Internal	Internal	Internal
Functions
Pre/post event recording	Yes	Yes	Yes	Yes	Yes	Yes
Pre-record time	60 seconds	60 seconds	120 seconds	30 seconds	75 seconds	120 seconds
One touch recording	Yes	Yes	Yes	Yes	Yes	Yes
Motion Detection	Yes	Yes	No	Yes	Yes	N/A
GPS	Yes	No	Yes	Yes	Yes	Yes
WiFi	Yes (optional)*	Yes	Yes	No	No	Yes
Streaming	No	No	Yes (via WiFi)	No	No	No
Loop Recording	Yes	Yes (optional firmware)	Yes	Yes	No	Yes
Password Protection	Yes	Yes	Yes	Yes	Yes	Yes
Video Compression	H.264	H.264	H.264	H.264	H.265	H.265
Body
Weather Resistance	IP57	IP68	IP67	IP66	IP65	IP65

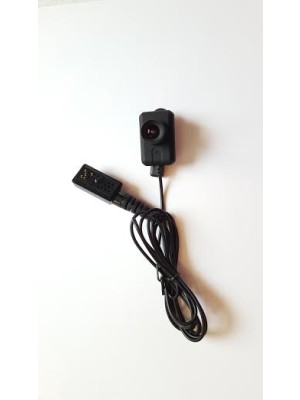

External Camera Support	Yes	Yes (optional)*	Yes	No	Yes	Yes (optional)*
USB	Yes (mini-B)	No	Yes (type C)	Yes	Yes (mini-B)	Yes (Type-C)
HDMI	Yes (mini)	No	No	No	No	No
Extension port	Yes (PTT)	No	No	No	No	No
LCD screen	Yes	No	No	Yes	Yes	Yes
Weight (ounces)	5.75	4.58	5.6	5.64	4.9	4.58
Dimensions (inches)	3.31x2.40x1.22	3.03x2.20x0.87	3.1x2.20x0.93	3.1x2.20x1	3.1x2.20x1	3.26x2.24x1
Support
Warranty	1 year	1 year	1 year	1 year	1 Year	1 Year
Video Storage
1080P@30fps	1 hour = 5GB	1 hour = 4.3GB	1 Hour = 5.6GB	1 Hour = 3.6GB	1 Hour = 2.6GB	1 Hour = 5.6GB
720P@30fps	1 hour = 3.6GB	1 hour = 3.7GB	1 Hour = 3.6GB	1 Hour = 3.6GB	1 Hour = 1.8GB	1 Hour = 3.6GB
480P@30/60fps	1 hour = 2.1GB	1 hour = 2.3GB	1 Hour = 1.8GB	1 Hour = 2.7GB	1 Hour = 1GB	1 Hour = 1.8GB
* special order only

More Information

More Information
SKU	PE-DV5-2
Battery Capacity	1950mAh
Battery Life	6 hours
Charge Time	150 minutes
Charging Dock	Yes data
Chipset	Ambarella A7
Video Format	.MOV
FOV	140°
IP Rating	IP65
Night Vision	Auto
Night Vision Range	30ft
Photo Format	.JPG
Pre/post Event Recording	Yes
Removable Battery	Yes
Storage Type	Internal
Time and Date Stamp	Yes
Video Resolution	1296p

Reviews 2

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Manuals / Brochures

PatrolEyes HD GPS DV5-2 Manual

PatrolEyes HD GPS DV5-2 Brochure

FAQs

I've reset my device and my camera will still not connect to my PC.

Please check or disable your antivirus software as that may be interfering with the connection of your device. Restart your PC and then close out of your antivirus and reconnect. Please also press down firmly on the camera if you are using a docking station to ensure it is connected. Once the device is connected you will hear a windows audio tone confirming that the device is now connected.

What is the difference between password protected mode and USB mode?

USB Mode: The pre-installed firmware allows you to transfer files directly to your PC via USB.
Password Protected Mode: An optional firmware version that allows you to password protect the cameras files, making them only accessible via the included software as well as restricting the option to change the date and time and police ID.

My camera says card full! How do I format my card?

If you are on windows, plug your camera into your PC and navigate to "My Computer" or "This PC". You should see your body camera's assigned drive letter. Usually D, E, or F. Depending on how many devices are connected to your computer. Right click on the drive letter assigned to your body camera and select "Format" towards the bottom. Another window will pop up showing you the settings available to format your device. Make sure the "File System" is set to fat32 if your camera is a 32GB model or smaller or exFAT if your camera is 64GB or larger. Enable "Quick Format" and then press "Start". Your device is now formatted.

How do I view the files I have recorded?

You can view the files directly on the device, using the HDMI to view on a TV or transferring the files via USB to a PC. Note: If your camera is in password protected mode you will have to use the password protected mode software. The software and drivers installation guide is included in the firmware section below.

Can the LED indicators on the top of the camera be disabled?

Yes, we do have this option available now via firmware upgrade. Please email us below to request this firmware if you would like this option.

What is the difference between high, medium and low in the video quality menu option?

High, medium and low are referring to the bitrate of the video. The higher the bitrate the higher the video quality. If you want to get the most battery life, setting the video quality to low will allow you to get up to 1 hour of extra battery life in certain modes.

Can I enable night vision mode without the infrared LED's glowing red for stealth operations?

Yes, in night vision mode the cameras lens infrared filter is removed, which allows more light to pass through. This enables the camera to be 3-4X better than in day mode in low light conditions.

Does audio record with the video in pre-event and post-recording modes?

Yes, audio and video are both recorded while in these modes. To disable the audio during pre-event and post-recordings, turn on the post audio mute in the device settings.

How much video can be recorded in pre-event recording mode?

It depends on which resolution you are recording in and the video quality mode (bitrate).

1080P (high): 25 seconds
720P (high): 40 seconds
480P (high): 40 seconds
480P (low): 1 minute

Do you have extended warranties available?

Yes, the camera does come with a full 1 year warranty against manufacturer defects and we do offer 2-4 year warranty options as well. Please contact us for pricing.
