Wireless 5.8GHZ Transmitter & Receiver Kit

In stock

The Wireless 5.8GHZ Transmitter and Receiver Kit is the longest range wireless setup on the market today! A 4ch switchable, mono audio, video wireless transmitter (Use 4 set ups in the same area with no interference.). This kit transmits crisp clear video signals through walls and between the rooms in a building. The hidden non-directional antenna reduces interference and provides high gain for superb performance. The state-of-the-art compact design makes the mini transmitter ideal for any application. This kit can be used with almost any security camera.

You can also use this product for home video entertainment by sending the video signals from a source equipment such as a satellite receiver, VCR, or camcorder to another TV in a different room. It simply links all your video devices and no cables are needed.

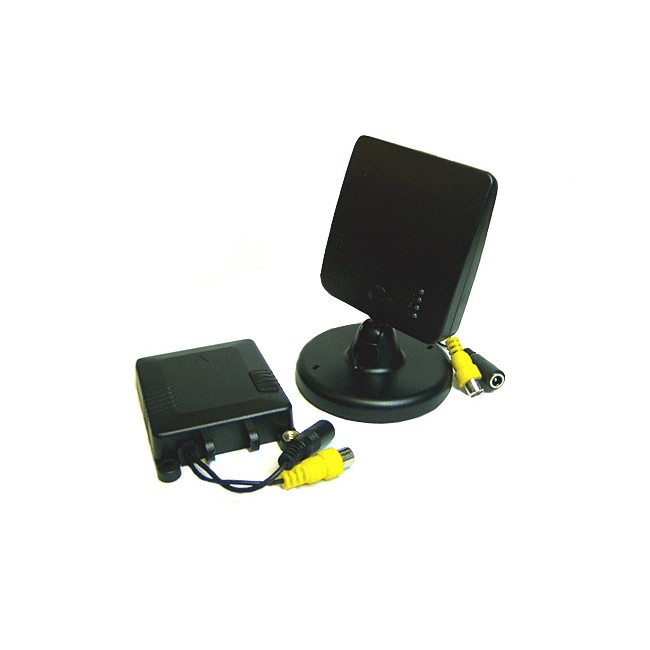

The VCM5M includes a mini transmitter and mini receiver. The transmitter can be used with color or black/white cameras. This long range wireless setup is perfect for integrated wireless camera monitoring system, DIY surveillance, and for household and commercial applications.


  • 5.8GHz ISM Band for High Quality Video
  • Long Transmission Range
  • Patented Hidden Antenna for Improved Performance
  • No Moving Parts or Adjustment for Better Reliability
  • User Friendly - Simply Plug It In
  • Clear FM Video
  • PC Presentation and Digital Movie Watching(Optional Converter)


  • Home Video Entertainment
  • Video Conference
  • Security Surveillance
  • Wireless Multimedia
  • Baby Monitor
  • Wireless Internet Surfing


Mini - Transmitter

  • Video Input: RCA Jack 1 Vp-p / SCART
  • Transmitting Frequencies: 5.744, 5.780, 5.816, 5.852 GHz( 4 Channels)
  • Modulation: FM
  • Power Supply: +12 VDC, 500 mA (max) or 12v now in stock
  • Transmitted Power: FCC or CE Compliant
  • Dimension: 79 x 64 x 18 (mm)
  • Operating Conditions: Indoor Usage Only UNLESS INSTALLED IN OUR OUTDOOR HOUSING.
  • Number of Channels: 4

Mini - Receiver

  • Transmitting Frequency: 5.744-5.852 GHz (or 4 Channels)
  • Modulation: FM
  • Power Supply: +9 VDC, 500 mA (max)
  • Receiver Sensitivity: -90 dBm
  • Dimension: 79 x 64 x 18 (mm)
  • Operating Conditions: Indoor Usage Only
  • Number of Channels: 4


  • 2x 12 volt DC 500ma Power Supplies
  • 1x BNC-RCA MALE connector for plug and play to your camera
  • 2x RCA male cables
