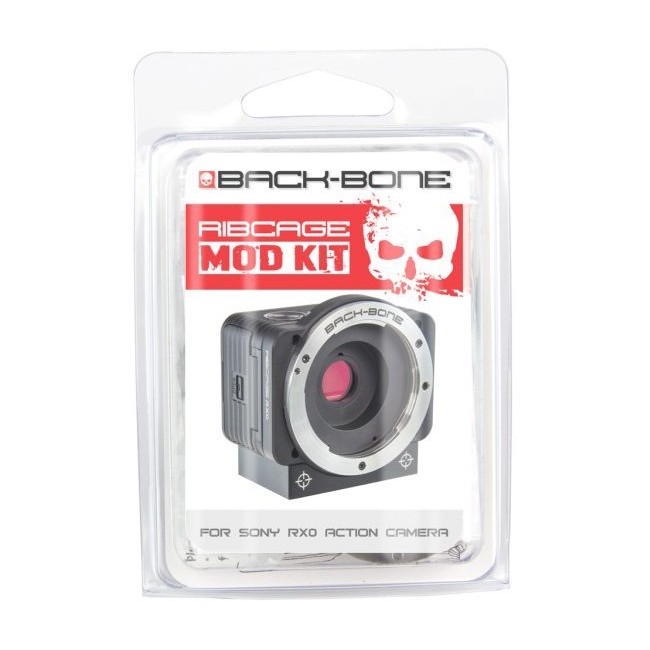

Ribcage Backbone Mod Kit For Sony RX0

$479.99
Availability:
In stock
SKU
RX0-K

PLEASE NOTE THAT THIS PRODUCT IS NOT NECESSARILY FOR EVERYBODY. IT REQUIRES YOU TO TAKE APART AND RE-ASSEMBLE YOUR CAMERA WHICH WILL VOID THE MANUFACTURER’S WARRANTY. BACK-BONE HAS NO CONTROL OVER THE END USER’S SKILL LEVEL AND CANNOT BE HELD RESPONSIBLE FOR ACCIDENTAL DAMAGE. WE RECOMMEND THAT YOU VIEW THE INSTALLATION VIDEO ON RIBCAGE SUPPORT PAGE BEFORE YOU BUY TO MAKE SURE THIS IS RIGHT FOR YOU.

Important: RIBCAGE RX0 modified Sony RX0 is not waterproof after conversion. The MFT mount is designed for manual lenses only.

Put your own glass on the amazing Sony RX0 with our Ribcage interchangeable lens mod kit. Use our custom parts to configure your RX0 with a passive micro four thirds (MFT) mount* or dedicated C-Mount. With this mount combination you can attach almost any lens, or use your camera with imaging equipment such as microscopes and telescopes. Use your SLR lenses with an optional adapter, or use some great vintage cinema lenses for a unique look.

If desired, the removable IR-cut filter allows you to capture footage in the wavelength of your choice for custom imaging and scientific applications. Control up to 5 cameras at once via WiFi and Bluetooth (Android/iOS/PC). Pair each camera with the new Sony CCB-WD1 Wired Control Box and create massive VR or bullet time arrays of up to 100 cameras with frame-by-frame sync accuracy! In addition our premium aluminum components help keep the camera cool for extended shooting!

Note: Camera and lenses not included

Note: Installation video can be found on youtube, or you can send us your camera also for professional modification service. Please contact us for installation cost!

Features:

  • MFT Mount* & C-Mount
  • Use SLR lenses & more with optional adapters
  • Tripod mount with both 1/4-20 & 3/8-16 UNC threads
  • Improved cooling for extended shooting
  • Internal filter holder & removable IR-cut filter for custom imaging applications
  • 1” (1.0-Type) stacked Exmor RS CMOS sensor with DRAM Chip
  • Clean 4K UHD HDMI out
  • Ultra slow motion up to 1000 fps
  • Up to 1/32000 sec. Anti-Distortion Shutter
  • Wireless or Wired multi camera control for multi-view applications
  • Wifi camera control (Android / iOS)
  • Control up to 5 cameras via smartphone

Includes:

  • 1 x Aluminum front plate
  • 1 x Steel MFT mounting ring
  • 1 x Aluminum C-Mount ring (for alternate configuration)
  • 1 x Tripod mounting plate with both 1/4-20 and 3/8-16 threads
  • 2 x IR-Cut Filters
  • 1 x MFT body cap
  • 1 x C-Mount body cap
  • 1 x Plastic spudger
  • 2 x Allen keys
  • 1 x Screw baggie (screws, o-rings and misc hardware)
  • 2 x 100μm shim
  • 1 x 300μm shim

More Information
SKU RX0-K
