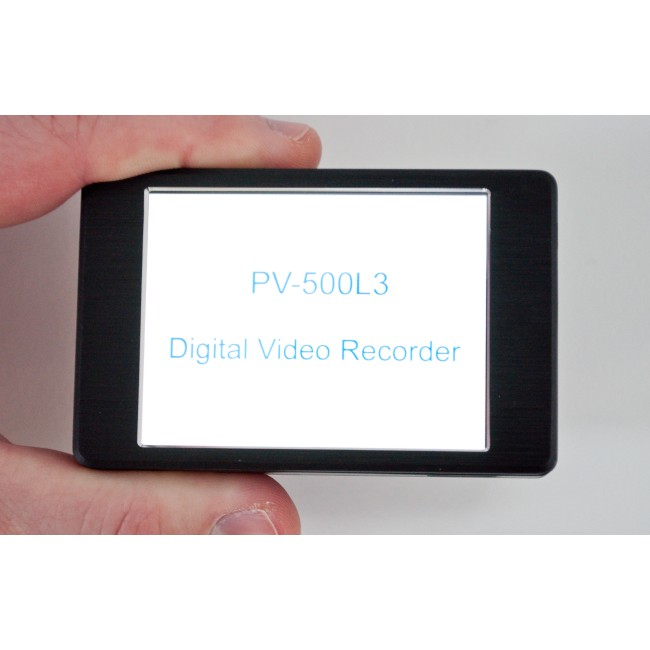

PV-500 Lite 3 Motion Detection DVR

Out of stock

The PV500 Lite 3 invented by LawMate is a first level law enforcement grade pocket digital video recorder built and designed from the ground up for professional covert video surveillance operations. This portable pocket DVR records at 720x480p @30 fps. With time and date stamping, this rugged unit will serve your covert video operational functions well. With the PV500 Lite 3 release, we are happy to report this third generation pocket digital video recorder has touch screen controls and features! With it's ability to record continuously or be set to motion activation, it can be used for both bodywear walk around covert video applications or stationary in place covert video operations. There is even a wireless remote control that can turn recording mode on and off. This micro sized DVR is really small! Just a little smaller than a package of cigarettes, the PV500 Lite 3 will actually slide perfectly into a card pack or a pack of empty cigarettes. Since memory storage is on a micro SD card, there is virtually no memory limitations. If you start to run out of memory space, just remove the micro SD card and place another one inside it. This also gives you the ability to segment your surveillance case evidence files when you are working on more than one case. Provides fast USB upload connection to your computer or digital device. The PV500 Lite 3 is best suited with a wide selection of LawMate grade digital video cameras but will also work with analog cameras.


  • Small Palm Sized Digital Video Recorder
  • IR Remote Controller
  • New Touch Screen Controls
  • High Resolution 720 x 480 (30 fps)
  • Time Stamp Functionality
  • Built-in AGC Microphone
  • Regulated Playing Speed
  • Continuous Recording/Motion Detection/Overwrite Functionality
  • USB Connection, SD Card Storage
  • Color 2.4 inch TFT Display
  • Compatible with Analog Cameras
  • Easy to use interface
  • Delete files on device
  • Reformat SD Card on Device


  • LCD Display: 2.4 inch TFT LCD
  • Picture Resolution: 720x480
  • Frame Rate: 30 fps
  • TV Output: NTSC/PAL Adjustable
  • Video Format: AVI, MPEG
  • Storage Format: FAT32, NTFS
  • Card Reader: SD, Micro SD
  • Remote Control: IR Remote Control
  • Wire Control: Power ON/OFF Wire Pilot Control
  • PC Interface: Mini USB 2.0
  • Microphone: AGC Quality
  • File Generation Gap Time: 3 seconds
  • Date/Time: YYYY/MM/DD. HH:MM:SS
  • Storage Ratio: 13MB per minute
  • Operation Time: CCD Camera: 200 min, CMOS Camera: 250 min
  • Battery Life: 200 min
  • Charging Time: 4.5 Hour
  • Battery Type: Li-ion Battery: 2200mA/4400mA
  • Speaker S/N: >95 dB
  • Power Supply Voltage: DC 5V
  • Power Supply Current: Recording: 600 mAH, Playback: 480 mAH
  • Memory: SD and Micro SD
  • Dimensions: 85 x 55 17 mm
  • Weight: 62g


  • IR Controller
  • USB Cable
  • DC 5V Charger
  • Carrying Case
  • Li-ion Battery
  • Earphones
  • AV Out Cable
  • AV In/Power cable
  • Cable Controller
More Information
SKU PV-500L3
