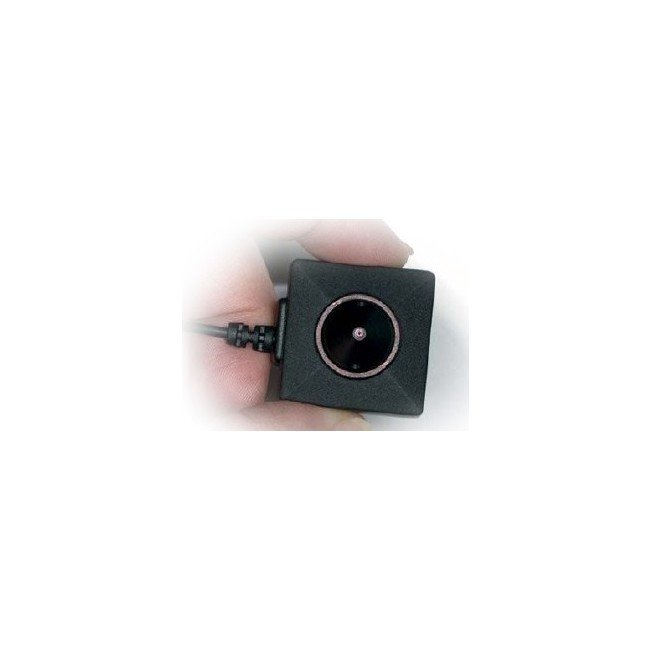

Mini 550 Cone Pinhole Camera

In stock

This tiny law enforcement grade cone pinhole camera is ideal when paired with the PV500ECO, PV500EVO, PV900 or PV1000 digital video recorders. With 550 lines of resolution and a 0.2 Lux rating, this high end camera with capture your video every time for special covertly video operations. With a cone shaped front, it's very easy to insert into a pinhole you make! The TB18-550 is perfect for your covert surveillance needs.

  • Video System: NTSC & PAL
  • Picture Element: NTSC: 811x508 / PAL: 795x596
  • Resolution: 550 TV lines
  • CCD Image Sensor: interline 1/3 in
  • S/N Ratio: more than 45dB (AGC off)
  • Min. Illumination: 0.2 Lux / 30 IRE @ F2.0
  • Electronic Shutter: NTSC: 1/60~1/100,000; PAL: 1/50~100,000
  • AGC: +18dB max
  • Video Output: 1.0V p-p composite at 75 ohm
  • Audio Output: 2Vp-p (max) 10KHz ohms
  • Lens: 4.3mm
  • Field of View: 78°
  • Power Supply Voltage: 5V+/-0.5V
  • Power Supply Current: 220mA
  • Dimension (w/ lens): 25x25x18mm
  • Weight: 22g
More Information
SKU TB18-550
