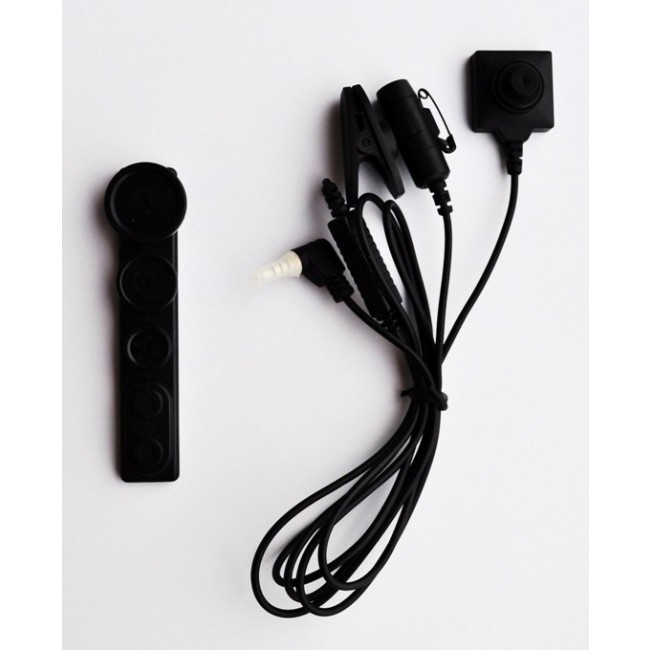

Lawmate Mini 480 Resolution Color Button Covert Camera CM-BU18

Out of stock

The CM-BU18 480 Res Button Camera is a good economical button camera that works great with the PV500 LITE DVR for a low cost covert kit. This covert camera offers enough options to stay hidden in almost any environment. The interchangeable covert lens covers allow this camera to remain hidden in almost any situation. The high-resolution camera will work in both day and night and includes a built-in microphone. NOTE: The designer box and 9V battery pack/belt holder is not included with this camera, but is not needed since it can be powered directly from the PV Series DVR's. Screw kit also not included.

View CM-BU18 Manual


  • Video System: PAL / NTSC
  • Picture element: (H)768x(V)582
  • Resolution: 480 TVL
  • CCD Sensor: 1/3 Sony Exview CCD
  • S/N Ratio: 48db
  • Min. Illumination: 1 lux /F1.2
  • Elec. Shutter: 1/50 - 1/120,000
  • AGC: +18dB Max
  • Video output: 1.0v P-P composite at 75ohm
  • Audio output: 2.0v P-P 10khz
  • Mic sensitivity: 59dB + 13dB
  • Lens: 4.3mm pinhole
  • Angle of view: 80 degrees
  • Supply voltage: 5v +/-0.5v
  • Current: 250mA
  • Dimensions: 29 x 25 x 19mm
  • Weight: 30g

What's Included:

  • 3 x changeable button heads
  • 1 x mini microphone
