Lawmate PV1000 EVO 3 HD WiFi Ultra High Definition DVR (1TB)

Out of stock

Pair this new HD pocket DVR with the CMD-BU20LX for true high definition covert recording.

The PV-1000EVO3, an upgrade from the PV-1000T5U, is the world's most advanced portable DVR! This DVR offers full 1080p/30fps high definition recording and features a built-in 1TB hard drive (with an micro SD card port in addition) and HDMI input/output compatible with many digital cameras. The PV-1000EVO3 offers multi layer password protection that will ensure your files are safe at all times. Coming with a full 5" color TFT LCD touch screen, this DVR is very user friendly while still remaining a covert option. The PV-1000EVO3 also features a built in WiFi module for remote viewing, pre-event recording that will catch 15 seconds of footage before you hit the record button, adjustable frame rate, video & photo modes, multi-layer password protection, and an all metal brushed cast aluminum black case that offers maximum durability!

PV-1000EVO3 Quick Start User Guide


  • 5" TFT LCD touch screen
  • 1080p full HD recording (when paired with the CMD-BU20LX)
  • User friendly operation allows you to get recording quickly an easily
  • Video and photo modes
  • Adjustable frame rate
  • Tamper-proof frame counter
  • Unique ID number for video files
  • Pre-event recording
  • Multi-layer password protection

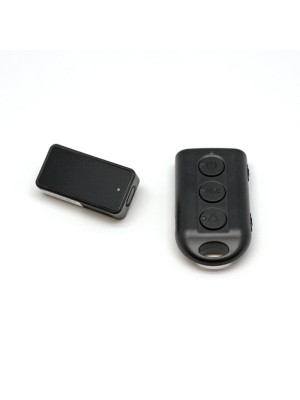

  • Optional cable remote controller
  • Log file
  • 1TB built in storage (Also supports up to 32GB/128G(FAT32 eXFAT))

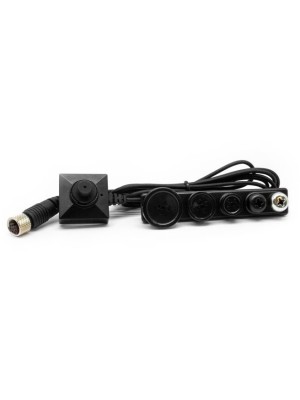

  • Compatible with the CMD-BU20LX button camera

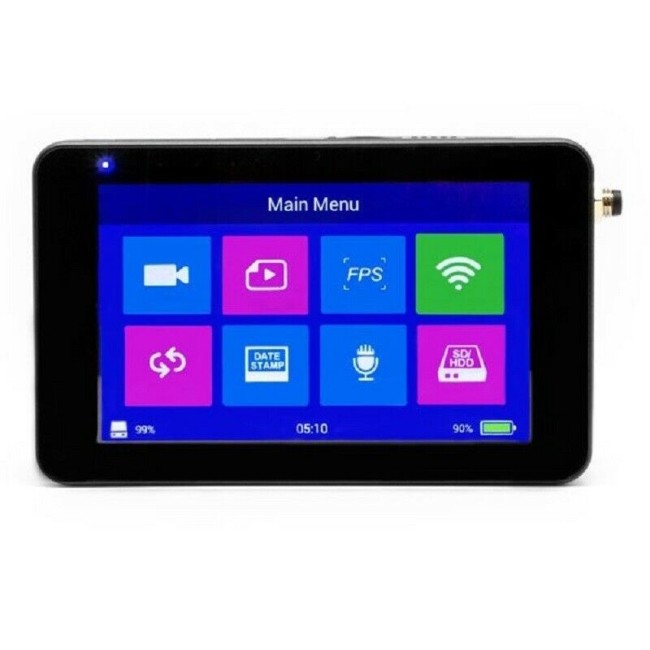

  • Touch Screen: 5“ 800X480 color TFT LCD touch-screen
  • File Format: MP4
  • Video Input:Digital camera signal 1080P BT656 input; NTSC/PAL Auto-Detection (2.5); NTSC/PAL Auto-Detection (3.5)
  • Recording modes: Standard | Motion Detection
  • Resolution modes:1920x1080
  • Memory Type: Built-in 1TB & memory card support
  • DC5V to Camera: DC5V 250mA Max (Over current protection)
  • DC12V to Camera: DC12V 150mA Max (Over current protection)
  • Frame Rate: 30FPS & 25FPS
  • Image Quality (Bit rate): In Standard 720x576@25FPS (PAL) 720x480@30FPS (NTSC)
  • HDMI Out: HDMI Image output
  • PC Interface: USB 2.0
  • WiFi: Built-in
  • Date/Time Stamp: YYYY/MM/DD, HH,MM,SS
  • Frame Counter Stamp: Yes
  • Picture format: JPEG

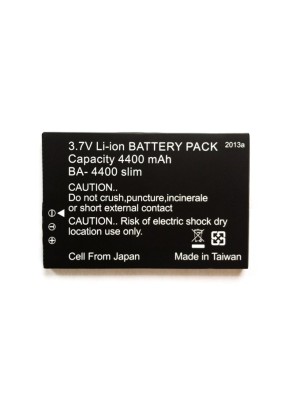

  • Battery Type: DC 3.7V 4400mA Lithium battery

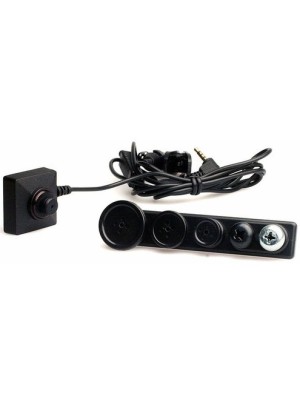

  • Battery Lifetime: 170min(BU-19 PAL 5V) / 120min(BU-19 12V) / 120min(BU20LUX) for HDD
  • Power Consumption: Recording: 1.5A (Wi-Fi OFF)
  • Charging Current: 1.5A
  • Dimensions: 141.5x87.8x27.3mm
  • Weight: 317g


  • Battery
  • Wall charger
  • USB Cable
  • Carrying case
  • AV cables
  • European Adapter
  • Cable to Cam
  • Manual
