Lawmate Mini 520 Resolution Analog Button Covert Camera CM-BU20

In stock
SKU
CM-BU20
$189.00

The CM-BU20 520 Res Button Camera is a good economical button camera that works great with the PV500ECO 2 DVR for a low cost covert kit. This covert camera offers enough options to stay hidden in almost any environment. The interchangeable covert lens covers allow this camera to remain hidden in almost any situation. The high-resolution camera will work in both day and night and includes a built-in microphone.

Specifications:

  • Video System: PAL / NTSC
  • Picture element: NTSC: 720H x 480V, PAL:720H x 576 (H*V)
  • Resolution: 520 TVL
  • CCD Sensor: 1/4 CMOS
  • S/N Ratio: 45db
  • Min. Illumination: .015 lux @ F1.2
  • Video output: 1.0v P-P composite at 75ohm
  • Audio output: 2.0v P-P 10khz
  • Mic sensitivity: 59dB + 13dB
  • Lens: 4.3mm pinhole
  • Angle of view: 66 degrees
  • Supply voltage: 5v +/-0.5v
  • Current: 250mA
  • Dimensions: 29 x 25 x 19mm
  • Weight: 30g

Included:

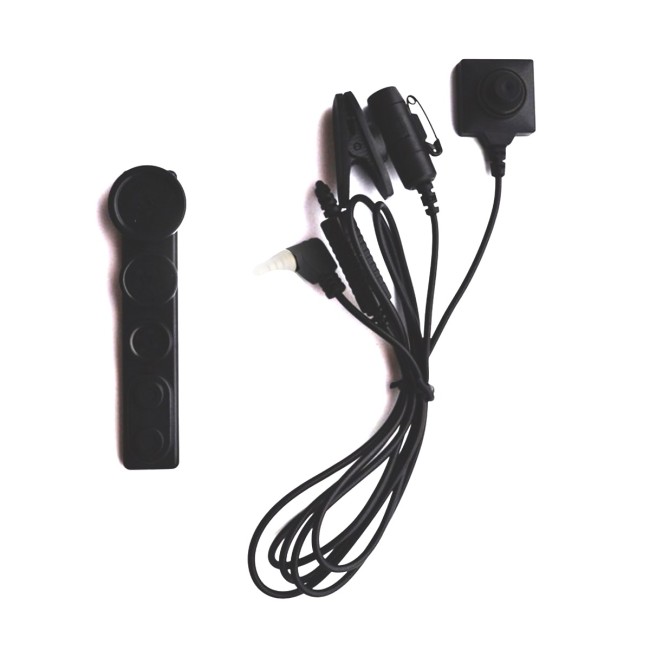

  • Analog button camera
  • 3 x changeable button heads
  • 1 x mini microphone
  • Manual
  • 1 year limited warranty
