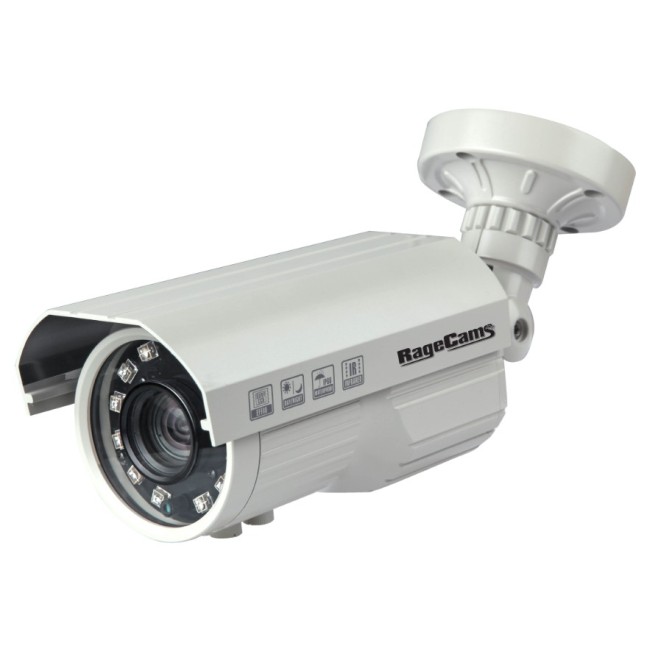

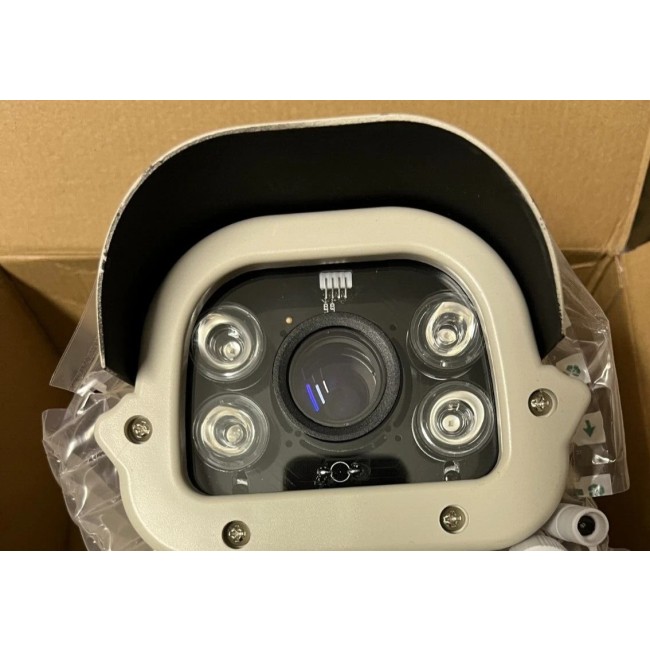

High Speed License Plate Capture Infrared Camera

Most surveillance cameras out there cannot catch a license plate at 70MPH. The SC-LPRC700 can! Equipped with infrared LEDs and 5-50MM to capture plates in even pitch darkness. Use your DVR in the highest quality settings and highest frame rate for the best results possible.

Required items to use this camera:

• HD Version: You need to use RG59U with 18/2 power. Your DVR must accept an analog input via RCA's or BNC connector and be 1080p capable.
• HD with IP Version: You need to use CAT5E (ethernet) cable. Your DVR must accept an ethernet input.

We also customize the length of these cables from 25ft to 500ft. Please contact us for pricing.

Features:

• 5-50MM manual zoom lens
• Capture plates in harsh lighting environments and at high speeds up to 70MPH in pitch darkness

Specifications:

• Imaging Sensor: 1/3" Sony 673/672AK CCD + Sony Enhanced Effio-E 4140 DSP
• Effective Pixels:
• PAL: 976(H)×582(V)
• NTSC: 976(H)×494(V)
• Horizontal Resolution: 650TVL
• Signal System: PAL/ NTSC
• Lens: 5-50mm manual VF lens
• IR LEDs: 12pcs Cold Light Power IR leds
• IR Distance: 75-80M
• Minimum Illumination 0Lux (When IR On)
• Video Output: 1.0Vp-p, 75 ohms
• S/N Ratio: More than 50dB (AGC OFF)
• OSD Menu: English, Chinese, Japanese, German, French, Russian, Portuguese, Spanish
• Dual Shutter speed:
• Day: auto,1/500, 1/1,000, 1/2,000 sec
• Night: 1/500, 1/1,000, 1/2,000, 1/4000 sec
• White Balance: ATW/Push/User1/User2/Anti CR/Manual/Push Lock
• Backlight Compensation: OFF/BLC/HLC
• Motion Detection: 4 Areas
• Privacy Mask: 8 Masks
• Mirror: OFF / V-FLIP/H-FLIP/HV-FLIP
• Wide Dynamic Range: ATR (Digital WDR)
• Digital Noise Reduction: 2D-NR
• Defog: Optional
• RS-485: Optional
• Exposure control for IR light: Yes
• Operating Temperature: -20 °C ~ + 50 °C
• Power Supply: DC12V

Includes:

• 1- 12V DC 1500MA power supply
