Lawmate HD 1080p WiFi Mini DVR Covert Screw Button Camera Kit

In stock

This package combines the new PV-500HDW HD WiFi pocket DVR and the BU-18HD 1080P button camera for an extremely powerful professional grade surveillance kit!

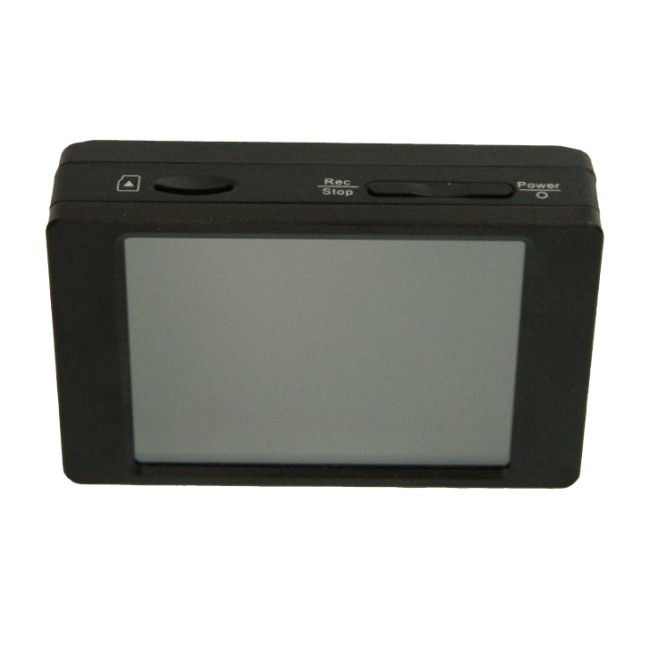

PV-500HDW 1080P High Definition WiFi Mini DVR

he PV-500HDW-PRO is a professional-grade 1080p pocket DVR from Lawmate, now with built-in WiFi. You can locally stream and access your data from an app on your cell phone. This DVR allows you to record for up to 240 minutes and works with Lawmate compatible HD digital cameras.

PV-500HDW-Pro Manual


  • 3" touch screen
  • WiFi capability
  • Supports up to a 1080p camera
  • Optional date/time stamp
  • Built-in AGC microphone
  • Regulated playing speed
  • Continuous recording & overwrite functionality
  • Motion detection
  • USB interface
  • Storage via SD card

Compatible with

  • ER-18HD
  • BU-18HD
  • BU-18HD Cone
  • PI-RF50TX


  • WiFi Module: IEEE 802.11b/g/n
  • Frame Rate: 1080p @ 30fps, 720p/WVGA @ 30-60fps
  • TV Output: NTSC/PAL
  • Video Format: H.264 MOV
  • Memory: Up to 32GB SD card
  • PC Interface: Mini USB 2.0
  • File Generation Gap Time: 3 seconds
  • Date/Time Stamp Format: YYYY/MM/DD HH:MM:SS
  • Storage Ratio: 13MB per minute
  • Operation Time:
    • CCD Camera: 200 min
    • CMOS Camera: 250 min
  • Charging Time: 4.5 Hour
  • Battery Type: 2200mA/4400mA Li-ion Battery
  • Speaker S/N: >95 dB
  • Power Supply Voltage: DC 5V
  • Power Consumption: 380-440 mA
  • Dimensions: 85 x 54 x 12 mm (with battery)
  • Weight: 104g (with battery)


  • Battery pack
  • USB charger
  • Camera cable
  • Pouch

BU-18HD 1080p Covert Body Mini Button Screw Camera Kit

The BU-18HD is a 1080p covert button camera kit! It features a 3MP CMOS camera that shoots full 1080p video, the ability to shoot in low light and multiple button/screw heads for a wide range of recording capabilities. Its self-contained microphone & single cable design makes it the perfect fit for any covert surveillance needs!


  • 3MP CMOS covert pinhole camera
  • 1080p video recording
  • 0.03 Lux F2.0 (50IRE) low light sensitivity
  • Self-contained microphone & single cable design
  • Lightweight with ultra-thin design cables
  • Multiple button & screw heads for camera


  • Image Sensor: 1/2.9" progressive CMOS
  • Resolution: 1920x1080
  • Sensor Sensitivity: 0.03 Lux @ F 2.0
  • Lens: F/No. F2.0
  • Focal Length: 4.3mm
  • Angle of View: 78°
  • Electronic Shutter: 1/8 ~ 1/30,000
  • Power Supply Current: 220mA
  • Operating Temperature: -10°C ~ 60°C
  • Storage Temperature: -30°C ~ 80°C
  • Power Input: DC 3.3V± 5%
  • Dimensions: 25x25x17mm
  • Weight: 18g


  • BU-18HD button camera
  • Button/screw kit
  • Double-coated tape
  • Lens cover
  • User manual
